Pentens High Pressure Injection Packer 10cm | 高壓注漿針頭
DESCRIPTION

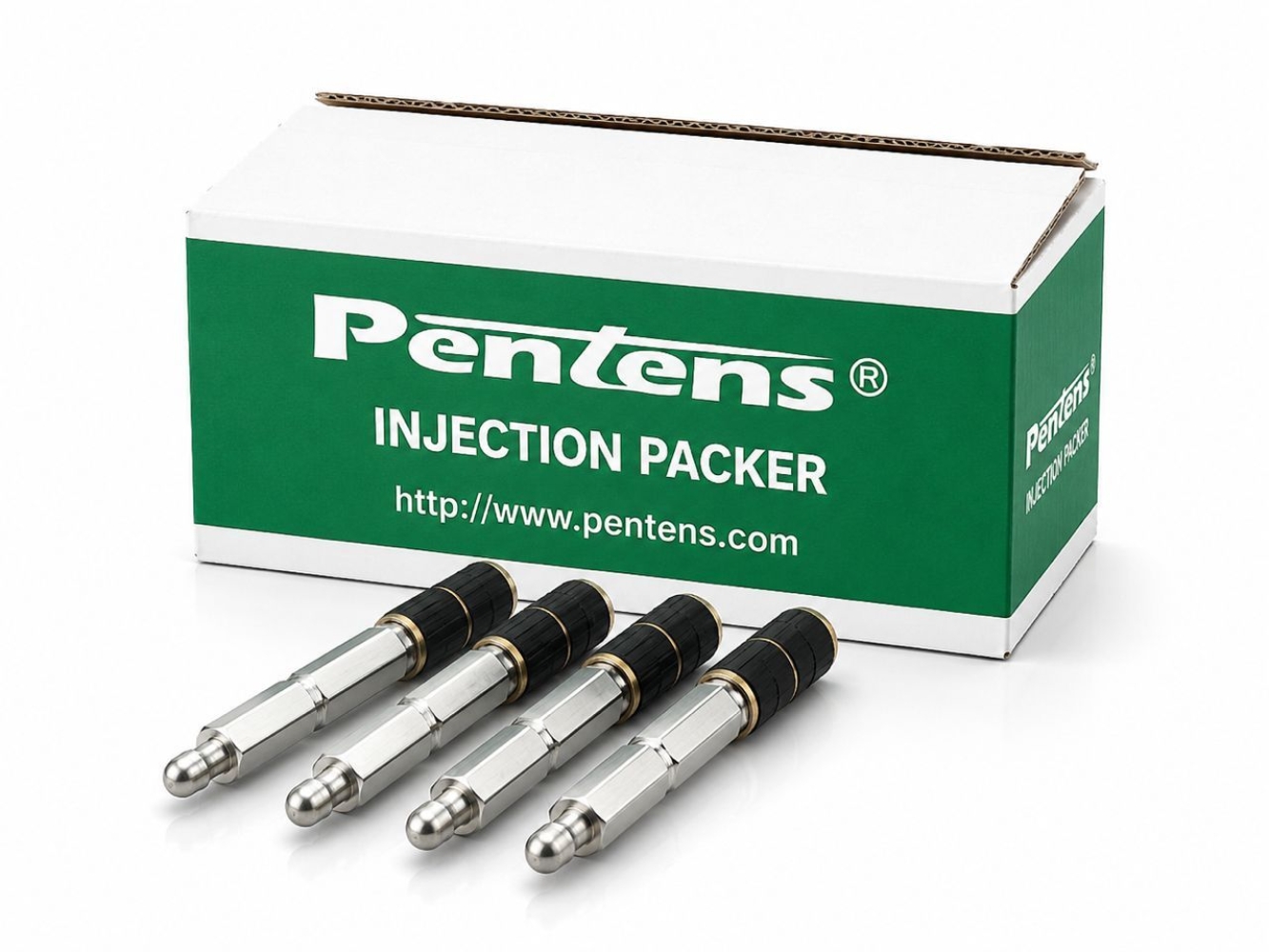

Pentens Injection Packer 10cm is a mechanical injection packer designed for pressure injection of polyurethane (PU) resin and epoxy resin into concrete cracks, joints, honeycombs, and leaking areas.

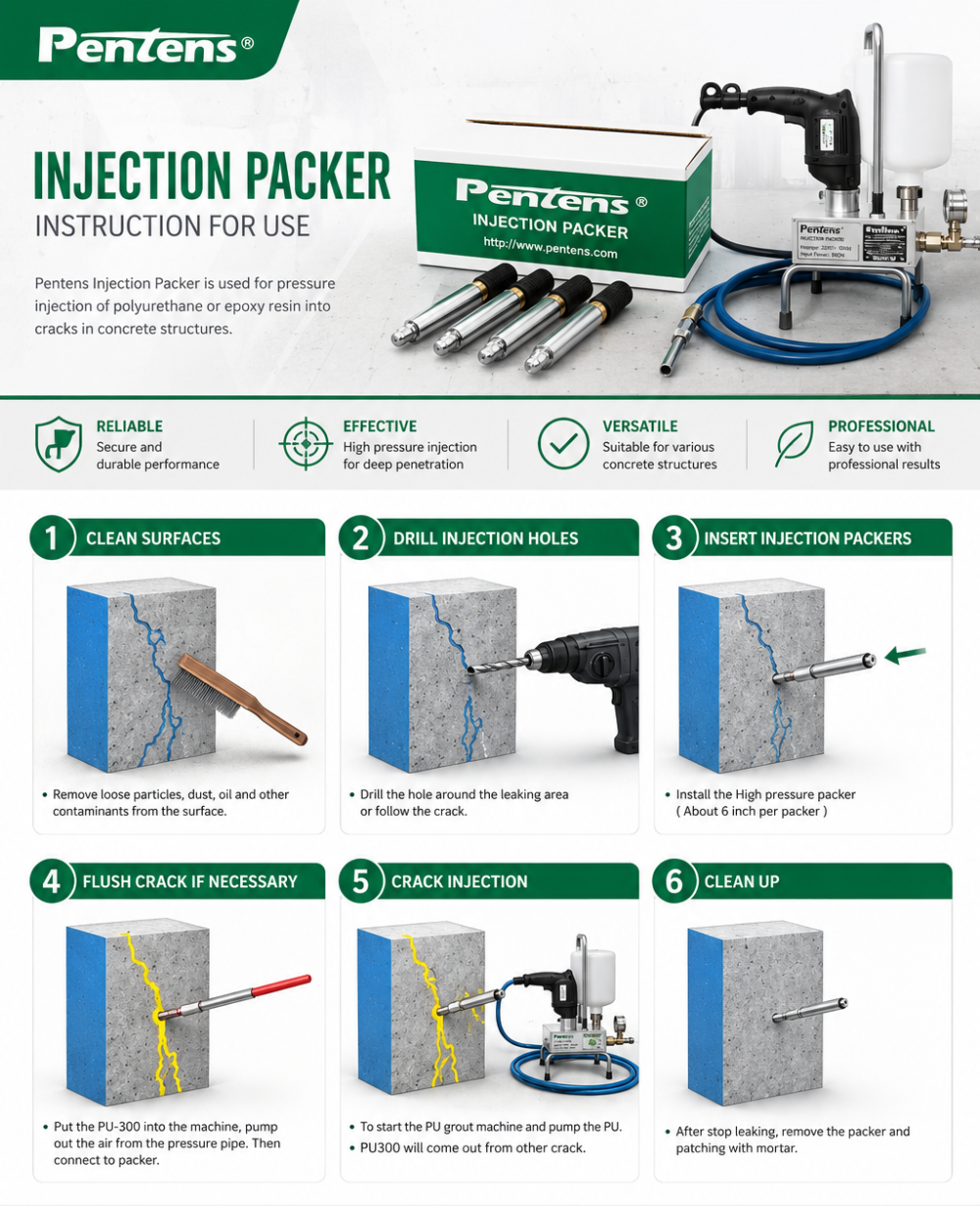

The packer is installed into pre-drilled holes and tightened to create a secure seal during injection works.
TYPICAL APPLICATIONS
▪ Concrete crack injection
▪ Waterproofing repair works
▪ Basement leakage repair
▪ Water Tank & Retaining Wall repair
▪ Tunnel & underground structures
▪ PU foam injection
▪ Epoxy crack repair
PRODUCT FEATURES
▪ High pressure resistance
▪ Durable steel body
▪ Reusable design
▪ Easy Installation and removal
▪ Excellent sealing performance
▪ Suitable for PU and epoxy injection systems
TECHNICAL INFORMATION
| Property | Specification |
|---|---|
| Product Type | Mechanical Injection Packer |
| Length | 100 mm (10 cm) |
| Material | Zinc-coated steel / stainless steel body |
| Rubber Sleeve | Expandable rubber seal |
| Injection Type | PU / Epoxy Injection |
| Connection | Standard grease nipple / coupler |
| Hole Diameter | Approx. 13 mm |
| Recommended Drill Bit | 13 mm – 14 mm |
| Installation Depth | Approx. 50 – 70 mm |
| Usage | Reusable |
PACKAGING
▪ 200 pcs / box
